What doea MAP sensor do
The intake manifold pressure sensor, also known as the MAP (Manifold Absolute Pressure) sensor, is a key component of the gasoline engine's fuel injection system. Its role is to measure the absolute pressure in the intake manifold to determine the density of the air and calculate the amount of air entering the engine, in conjunction with the engine's RPM. The working principle of the MAP sensor is similar to that of the Mass Airflow Sensor (MAF) and is primarily used to control fuel injection quantity and ignition timing advance. It is important to note that the intake manifold between the throttle body and intake valves of a typical engine is usually under vacuum. The intake manifold pressure sensor is a crucial source of information for the engine control computer to accurately control the engine by determining the amount of air entering it.
ALSO SEE: What is MAP sensor: function, symptom and replacement
How to test a MAP sensor
The detection of the intake manifold pressure sensor (MAP sensor) is crucial as it helps improve engine performance and fuel efficiency, control emissions, maintain driving stability, detect faults early, and perform maintenance, ensuring proper vehicle operation and extending engine life.
Here are the methods for testing the intake manifold pressure sensor:
1. Voltage-based testing: Use a multimeter set to the DC voltage mode (10 or 20V) to measure the output voltage of the MAP sensor. At idle, the normal output voltage should be around 0.9V. As RPM increases and vacuum decreases, the voltage value should increase. If the signal voltage is below the normal range (possibly due to signal shorted to ground, low reference voltage, etc.), it may result in reduced power, difficulty in starting, high fuel consumption, and the illumination of the check engine light.
2. Voltage-based testing: If the signal voltage is higher than the normal range (possibly due to open ground, signal shorted to reference voltage, etc.), it may result in reduced power, exhaust pipe backfiring, and the illumination of the check engine light. After ruling out any wiring faults and confirming the correct reference voltage provided by the ECU, if the issue persists, the sensor should be replaced.
3. Frequency-based testing: Use an oscilloscope to measure the output signal of the intake manifold pressure sensor. If measured using a multimeter, the voltage value may appear constant (around 2.4V). This is because the output signal is a square wave, and with changes in engine speed, the vacuum level in the intake manifold changes, but the amplitude of the square wave remains constant (5V), while the frequency changes.
4. If there is no change in frequency or no square wave (confirming that the intake manifold pressure sensor is frequency-based) and wiring faults (including connection plugs) have been ruled out, it may be necessary to replace the sensor.
How a dirty Map sensor destroy your engine's performance
1. Incorrect fuel-air mixture: The MAP sensor helps the ECU determine the appropriate amount of fuel to be injected into the engine based on the intake manifold pressure. If the MAP sensor is dirty or faulty, it may provide inaccurate readings to the ECU, resulting in an incorrect fuel-air mixture. This can lead to either a rich (excess fuel) or lean (insufficient fuel) condition, causing issues such as reduced power, poor acceleration, and increased fuel consumption.
2. Rough idling: A dirty MAP sensor can cause the engine to idle roughly or even stall. The incorrect readings from the sensor can disrupt the engine's idle control system, leading to unstable engine speed. This can make it challenging to keep the engine running smoothly while at a stop or during low-speed maneuvers.
3. Lack of power and responsiveness: The ECU relies on the MAP sensor to adjust the engine's timing and fuel delivery to optimize performance. If the sensor is dirty or malfunctioning, it may provide incorrect pressure readings, resulting in suboptimal adjustments by the ECU. This can lead to a lack of power, sluggish acceleration, and reduced engine responsiveness.
4. Engine hesitation or surging: A dirty MAP sensor can cause the engine to hesitate or surge during acceleration. The inaccurate readings may disrupt the ECU's ability to deliver the right amount of fuel and adjust the engine timing properly. As a result, you may experience a sudden loss of power or a surge in engine speed, making it difficult to maintain a smooth acceleration.
5. Check Engine Light (CEL) and reduced efficiency: In many vehicles, a malfunctioning MAP sensor will trigger the Check Engine Light on the dashboard. The ECU detects the abnormal readings from the sensor and illuminates the CEL to alert the driver of a potential issue. Additionally, a dirty MAP sensor can decrease the overall efficiency of the engine, leading to decreased fuel economy.
Map sensor failure causes
- Contamination: Dirt, dust, and oil buildup can contaminate the MAP sensor.
- Electrical issues: Wiring problems or electrical interference can cause MAP sensor failure.
- Age and wear: Over time, the MAP sensor may degrade or fail due to wear and tear.
Therefore, regular maintenance and cleaning of the MAP sensor is important because it ensures accurate engine management, prevents engine problems, improves fuel efficiency, enhances performance and drivability, and extends the sensor's lifespan. Keeping the MAP sensor clean helps maintain optimal engine performance and prevents issues caused by dirt and contaminants.
Can MAF cleaner be used on a MAP sensor
Yes, MAF (Mass Air Flow) cleaner can be used on a MAP (Manifold Absolute Pressure) sensor as an alternative cleaning method. While MAF cleaners are specifically formulated for cleaning the delicate components of mass airflow sensors, they can also be effective in cleaning MAP sensors. The active ingredients in MAF cleaners are often similar to those used in MAP sensor cleaners.
ALSO SEE: Mass Air Flow Sensor (MAF): What It is, Replacement & Working
How to Clean the MAP Sensor with MAF cleaner
Step-to step guide
-Locate and disconnect the MAP sensor: Locate the MAP sensor, which is generally located on or near the intake manifold. After determining its exact location, disconnect the MAP sensor from the vehicle, taking care to avoid damaging connectors or wires. Note that you may need to remove the screws or clamps securing the MAP sensor.
-Brush off loose debris: Use a small soft brush to gently remove any loose dirt, dust, or debris from the sensor.
—Using MAF cleaner to clean MAP sensor: Spray a small amount of MAF cleaner onto the sensor element. It's important to use an MAF cleaner that is safe for use on sensitive electronic components. Avoid spraying other nearby components or wiring.
—Reinstall the sensor after it is completely dry: Avoid artificially accelerating the drying process to cause damage to the MAP sensor，Let the MAF cleaner evaporate completely. Then carefully reinstall the MAP sensor back onto the intake manifold. Ensure it is secured properly and any retaining screws or clips are tightened.
Additional Tips and Considerations
- Wear gloves and eye protection when handling cleaning products.
- Avoid excessive spraying or harsh scrubbing that may damage the sensor.
- Follow safety precautions and manufacturer instructions for cleaning.
- Testing the sensor after cleaning to ensure proper functionality.Start the engine and monitor its performance. Check for any improvements in engine power, responsiveness, and idle smoothness. If the issue persists, further inspection or professional assistance may be necessary.
The considerations when using MAF cleaner on a MAP sensor
1. Compatibility: Check the manufacturer's instructions on the MAF cleaner to see if it is safe to use on MAP sensors.
2. Similarity: MAP sensors and MAF sensors are both sensitive electronic components, so the cleaner designed for MAF sensors can often be gentle enough for cleaning a MAP sensor.
3. Application: When using MAF cleaner on a MAP sensor, follow the same cleaning process as you would for a MAF sensor, ensuring the sensor is dry before reinstalling.
4. Precautions: Be cautious not to use excessive force or harsh cleaning methods that could damage the sensor. Always follow safety guidelines and manufacturer recommendations.
If you are unsure about using MAF cleaner on your MAP sensor, it's best to consult a professional or refer to the vehicle's manual for specific cleaning instructions.
How to clean map sensor without cleaner
When you don't have MAP sensor cleaner or MAF sensor cleaner, you can try the following methods to clean your MAP sensor:
Use compressed air: Use compressed air spray or an air canister to blow air onto the MAP sensor to remove dust and dirt.
Substitute with electronic cleaner spray: If you don't have a specific MAP sensor cleaner, you can try using a spray designed for cleaning electronic devices. Gently spray it onto the sensor.
Lightly wipe: Use a clean cloth or cotton swab to gently wipe the surface of the sensor to remove any surface dirt.
Inspect and ensure dryness: After cleaning, carefully inspect the MAP sensor to make sure it's clean, and ensure it is completely dry before reinstalling it into the vehicle.
Please note that these methods are alternatives when specific sensor cleaners are not available. It's important to exercise caution and be gentle when cleaning delicate electronic components like the MAP sensor. If possible, it's always recommended to use the appropriate cleaning products for optimal results.
Can you clean a MAP sensor with brake cleaner
Using brake cleaner to clean a MAP (Manifold Absolute Pressure) sensor is generally not recommended. Brake cleaner is a strong solvent designed specifically for cleaning brake components and removing brake dust, grease, and other contaminants. It may not be suitable for cleaning delicate electronic components like a MAP sensor.
Here are a few reasons why using brake cleaner on a MAP sensor is not advisable:
1. Harsh Solvent: Brake cleaner contains strong solvents that can potentially damage the sensitive components of a MAP sensor. These solvents may dissolve or degrade the protective coatings or delicate circuits within the sensor, leading to malfunction or permanent damage.
2. Residue and Contamination: Brake cleaner may leave behind residue or contaminants that are not compatible with the MAP sensor. This residue can interfere with the sensor's operation, affecting its accuracy and performance.
3. Lack of Precision: MAP sensors have small, sensitive elements that require precise cleaning. Brake cleaner is typically applied with a direct, forceful spray, which may not be suitable for the intricate components of a MAP sensor.
Here is an useful video:

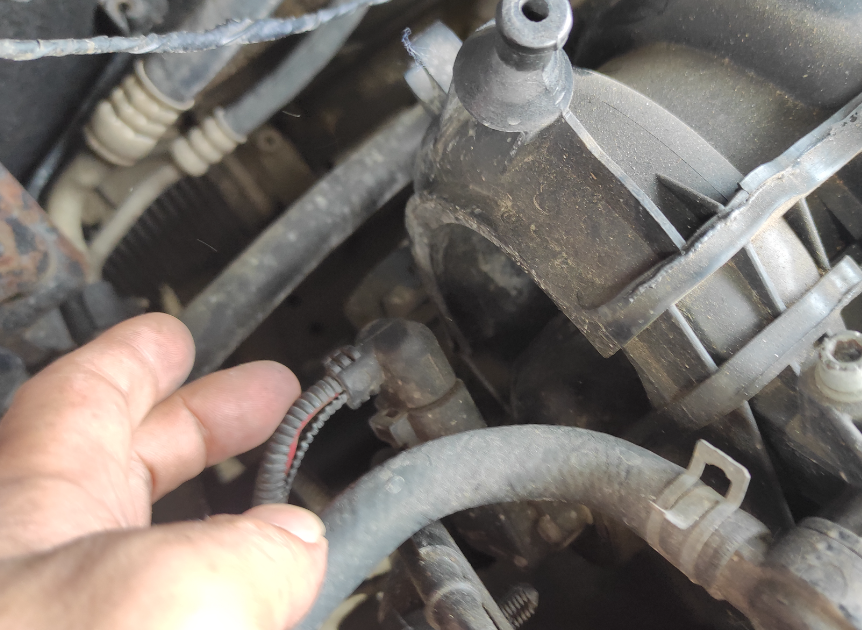

MAP sensor cleaning
