C1815 Transistor: Pinout, Features & Specifications

Content:

C1815 Transistor Overview

C1815 Specifications and Features

C1815 Testing and Application

C1815 Equivalents and Alternatives

Conclusion



C1815 Transistor Overview

What is a C1815 transistor?

C1815 is an NPN bipolar junction transistor (BJT) that is widely used for its versatility in electronic circuits. It is primarily used in audio frequency amplification and high voltage applications, providing both low noise operation and excellent hFE linearity.

C1815 Transistor Pinout

The C1815 is a commonly used NPN bipolar junction transistor (BJT). Knowing the C1815 transistor pinout is key for using it in circuits. It has three terminals: the emitter, base, and collector. Each pin is important for how the transistor works. They help current move and be controlled well. Below is a diagram showing the pinout of the C1815 transistor along with the function of each pin:

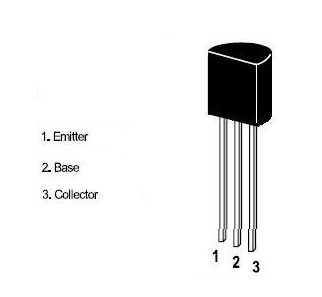

C1815 pinout diagram



The C1815 transistor pinout fits many uses. Its setup is good for audio amplifiers and signal circuits. This makes it a top pick for electronics projects.

C1815 CAD Model

A CAD model shows what the C1815 transistor looks like. It helps see where pins are on it. Designers use the CAD model to put the transistor in circuit designs right. It helps make sure everything fits and connects properly in projects.

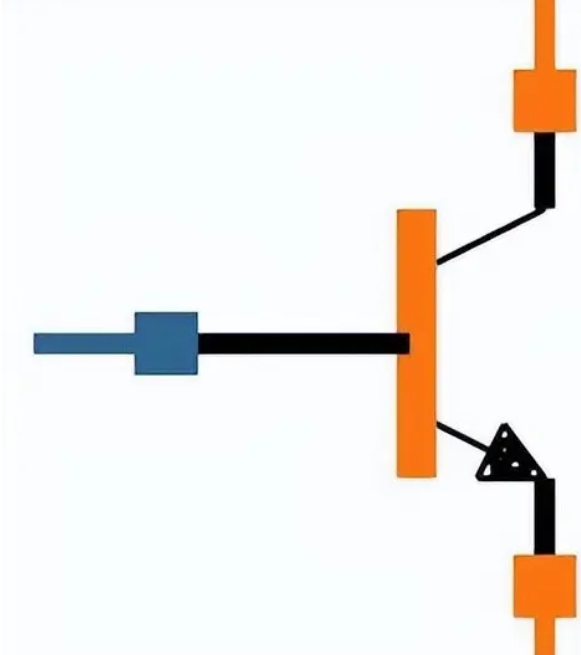

C1815 Circuit symbol model diagram

C1815 Package size diagram

C1815 Datasheet PDF

Based on the above introduction, you should now have a general understanding of the C1815 transistor. By reading the datasheet PDF, you can obtain comprehensive information about the C1815 electronic component, helping you better understand its functions and applications. Click to view or download the C1815 datasheet PDF.

Advantages and disadvantages of C1815

C1815 Specifications and Features

Features of C1815

Key Characteristics:

• Voltage and Current Handling:
  • Works efficiently with 50V voltage and 150mA current.
  • Suitable for various electronic tasks due to its compatibility with different voltage levels.
• Current Gain:
  • Offers a high DC current gain up to 700, enhancing signal strength.
• Efficiency:
  • Capable of handling increased current without significant power consumption, making it popular in diverse circuits.

Unique Attributes:

• Material Composition:
  • Constructed with unique silicon parts, featuring P-type silicon between two N-type components.
• Application Focus:
  • Designed to excel in audio amplifiers and sensor applications.
• Balanced Performance:
  • Strikes a good balance between cost and performance, appealing to both experts and hobbyists.

Detailed Features:

• Transistor Type:
  • NPN Bipolar Junction Transistor.
• Voltage and Current Ratings:
  • Maximum Collector Current: 150 mA.
  • Maximum Collector-Emitter Voltage: 50 V.
• Package Type:
  • Typically housed in a TO-92 package for ease of handling.
• Application Versatility:
  • Suitable for amplification and switching tasks, particularly effective in audio applications.
• Linearity:
  • Demonstrates excellent hFE linearity, ensuring precise signal amplification.
• Handling Capabilities:
  • Can manage high voltages and currents, suitable for a wide range of electronic functions.
• Cost-Effectiveness:
  • Economical choice for projects with budget constraints, favored by hobbyists and professionals alike.
• Wide Current Range:
  • Flexible current range for adaptation to diverse circuit requirements.
• Suitability:
  • Well-suited for signal switching and boosting applications.
• Size and Integration:
  • Compact size for easy integration into circuit designs.
• Reliability:
  • Consistent performance under standard operating conditions, ensuring reliability in various applications.

Specifications of C1815

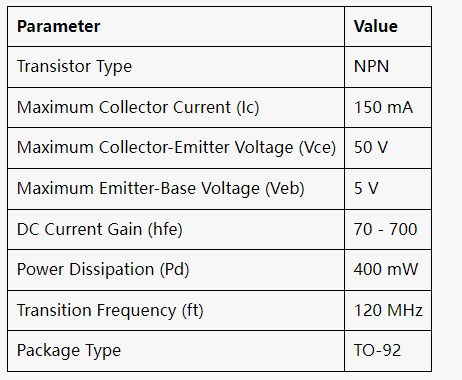

Knowing the technical details of the C1815 transistor helps understand its use. Here's a table with main specs:

These specifications provide key details about the C1815 NPN transistor, including its type, maximum ratings, gain, power dissipation, and package type. The C1815 transistor works well in different places. It's good for audio amplifiers, power supplies, and motor controls. It handles big currents efficiently, making it reliable for signal converters.

C1815 Testing and Application

Use of C1815

The C1815 transistor is used as an electronic switch in digital logic circuits and can control the operation of other components or circuits. It is also used in audio amplifiers for preamplifier stages and signal amplification and radio frequency (RF) applications. Its pinout helps make signals stronger and keeps waves steady. They are also popular in DIY electronics projects and learning kits because it's flexible.

How to Test C1815 Transistor

To test a C1815 transistor, you can use a multimeter to check the forward and reverse bias resistances across the base-emitter and collector-emitter junctions. Ensure that the transistor is not damaged and that it operates within its specified parameters. What you need is Multimeter, Resistors and Breadboard (if needed).



C1815 Equivalents and Alternatives

Equivalents for C1815

Finding other transistors like the C1815 is useful. The 2N3904 and BC547 are good options. They work well for switching and amplifying. The C1815 transistor pinout fits these, making them easy to use. Comparing these helps pick the best one. The C1815 transistor handles more voltage than 2N3904. This means it works in tougher jobs. It also manages more current than BC547, making it great for many circuits.

1. 2N3904 Transistor:

   • The 2N3904 transistor is a versatile NPN bipolar junction transistor commonly used for amplification and switching purposes.
   • It features a moderate voltage handling capability compared to the C1815, making it suitable for a wide range of applications.
   • Known for its reliability and widespread availability, the 2N3904 is a popular choice for various electronic projects.

2. BC547 Transistor:

   • The BC547 transistor is another NPN bipolar junction transistor known for its general-purpose use in amplification and switching circuits.
   • While it has a lower current-handling capacity compared to the C1815, the BC547 is valued for its low noise performance.
   • Widely utilized in audio amplifiers, sensors, and other low-power applications, the BC547 offers a good balance between cost and performance.

C1815 PNP Complementary

The C1815 transistor pairs with the PNP type, A1015. Together, they work well in amplifiers. This pairing balances audio and signal circuits nicely. Using C1815 with its PNP pair makes circuits stable. It's good for audio amps and converters. This setup helps switch smoothly between high and low states.

Alternative Transistor Models Comparison(2N2222, BC547, A1015, C945, C2655, BC107)

In this section, we will compare the C1815 transistor with several other transistor models, including 2N2222, BC547, A1015, C945, C2655, BC107, and C2655. This comparison will provide insights into the differences and similarities among these transistors, aiding in the selection of the most suitable transistor for specific electronic applications. Here is an Overall Comparison:

Transistor	Type	VCEO (V)	IC (mA)	hFE	Applications	Pinout
C1815	NPN	50	150	70-700	Audio Amplification, Switching	E, B, C
2N2222	NPN	40	600	100-600	General Purpose, Amplification	E, B, C
BC547	NPN	65	100	100-500	General Purpose, Amplification	E, B, C
A1015	PNP	50	150	70-700	Complementary to C1815	E, B, C
C945	NPN	50	150	50-300	General Purpose, Amplification	E, B, C

Individual Comparisons:

C1815 vs. BC547

Knowing how C1815 and BC547 differ helps pick the right one. The C1815 can handle more voltage than the BC547. This means it works better with higher voltages. Also, the C1815 allows more current, making it useful for many things.

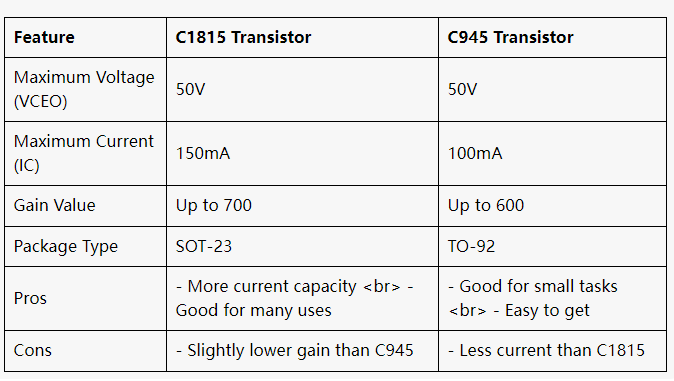

C945 vs. C1815

The C945 and C1815 have similar performance in terms of maximum voltage and maximum current, but the C1815 has a higher gain value of 700, while the C945 has a gain value of 600. Therefore, for applications that require higher gain, the C1815 may be more suitable. In addition, the larger current capacity of the C1815 makes it more useful in many uses.



Conclusion

The pin arrangement, characteristics and specifications of C1815 transistors are described in detail. The C1815 transistor is an NPN polar transistor with a pin arrangement of E (Emitter), B (Base), C (Collector). The maximum voltage (VCEO) is 50V, the maximum current (IC) is 150mA, and the gain value can reach 700. The transistor package type is SOT-23. The advantages of the C1815 transistor include the ability to withstand higher voltages and higher currents, making it excellent in high voltage and high current applications. However, the gain value of the C1815 is slightly lower compared to other transistors.

In summary, this article gives a comprehensive introduction to the key information of the C1815 transistor, helping readers to understand the pin arrangement, characteristics and specifications of the device, so as to better select and apply the C1815 transistor.
