DIMM and DDR4 are key elements in the field of computer memory, playing a decisive role in the efficiency and stability of computer operations. This article aims to provide an in-depth analysis of the basic concepts and characteristics of DDR4 and DIMM.
What is DIMM
DIMM, short for 'dual in-line memory module,' is a new type of memory module that emerged after the introduction of the Pentium CPU, developed based on the single in-line memory module (SIMM). Like SIMM, DIMM is a module that contains one or more random access memory (RAM) chips on a small circuit board, with pins that connect it to the computer motherboard. DIMM is dedicated to memory module installation and is widely used in various devices such as desktop computers, workstations, and servers.
Types of DIMM modules
There are several types of DIMM (Dual In-Line Memory Module) modules commonly used in computer systems. Some of the most common types include:
1. UDIMM (Unbuffered DIMM):
- UDIMM modules are the most common type of DIMM used in desktop computers.
- They do not have any additional components to help with data flow, making them more affordable but with slightly lower performance compared to other types.
2. RDIMM (Registered DIMM):
- RDIMM modules have a register between the DRAM modules and the memory controller.
- The register helps to electrically buffer the control signals, allowing for larger capacities and more stable performance, often used in servers.
3. LRDIMM (Load-Reduced DIMM):
- LRDIMM modules have an additional buffer chip that reduces the electrical load on the memory controller.
- They can support higher capacities and more modules per channel compared to RDIMMs, commonly used in high-performance server applications.
4. ECC DIMM (Error-Correcting Code DIMM):
- ECC DIMMs include additional memory chips to detect and correct errors.
- They are commonly used in mission-critical systems where data integrity is crucial, such as servers and workstations.
5. SO-DIMM (Small Outline DIMM):
- SO-DIMM modules are smaller in size compared to standard DIMMs and are commonly used in laptops, small form factor computers, and other compact devices.
6. Registered ECC DIMM:
- These modules combine the features of Registered DIMMs and ECC DIMMs, offering both error correction capabilities and the benefits of a register for stability and capacity.
Comparisons of SO-DIMM, U-DIMM, R-DIMM, LR-DIMM:
Price: From a pricing perspective, RDIMM is relatively moderate. Small-capacity UDIMMs are cheaper, but due to high manufacturing requirements, the prices of large-capacity UDIMMs can even exceed RDIMMs. LR-DIMMs are priced higher than RDIMMs and UDIMMs.
Capacity: Only LR-DIMMs can support maximum total memory capacity. However, the required memory capacity for most applications can generally be achieved by deploying RDIMMs.
Frequency: Currently, only RDIMMs support 1.6GHz, providing larger bandwidth and lower latency.
Latency: While UDIMMs have the lowest latency at the same frequency, RDIMMs can support 1.6GHz, using higher frequencies to reduce latency.
Power Consumption: LR-DIMMs have the highest power consumption, while RDIMMs and UDIMMs have lower power consumption.
DDIM Common applications
Desktop Computers: DIMM modules are commonly used in desktop computers to provide system memory for running applications, storing data, and facilitating multitasking.
Laptops and Notebooks: Some laptops and notebooks also utilize SO-DIMM (Small Outline DIMM) modules, a smaller form factor of DIMM, to provide memory in a compact size.
Servers: DIMM modules, including RDIMM (Registered DIMM) and LRDIMM (Load-Reduced DIMM), are widely used in server systems to support high-performance computing, data storage, and server applications.
Workstations: Workstation computers, used for demanding tasks such as graphic design, video editing, and engineering simulations, often incorporate high-capacity and high-speed DIMM modules for improved performance.
Gaming Computers: Gaming PCs commonly utilize high-speed DIMM modules to enhance gaming performance, reduce latency, and support smooth gameplay.
Virtualization: Systems running virtualization software, such as virtual machines or cloud computing platforms, benefit from DIMM modules to handle multiple operating systems and applications simultaneously.
Data Centers: Data center servers and storage systems rely on high-capacity and reliable DIMM modules to manage large amounts of data, ensure data integrity, and support efficient data processing.
Networking Devices: Some networking devices, such as routers, switches, and network appliances, use DIMM modules for caching data, storing configurations, and improving network performance.
Industrial Applications: DIMM modules are also used in industrial computers, embedded systems, and automation equipment to provide reliable memory for industrial control and monitoring applications.
Medical Equipment: Medical devices and imaging systems often incorporate DIMM modules to store and process medical data, images, and patient information efficiently and securely.
What is DDR4
DDR4 SDRAM (Double-Data-Rate Fourth Generation Synchronous Dynamic Random Access Memory), is a high-bandwidth computer memory specification. It belongs to the SDRAM family of memory products, offering higher operating performance and lower voltage compared to DDR3 SDRAM, making it the latest memory specification currently available. The initial data transfer rate starts at 2133MT/s, with an upper limit currently set at 4266MT/s.
What is DDR
DDR stands for Double Data Rate Synchronous Dynamic Random-Access Memory, mainly used in computer memory. The key features of DDR include a higher number of signal lines, fast speed, and complex operations, presenting significant challenges for testing and analysis. DDR essentially doubles the speed of SDRAM without the need to increase the clock frequency. It allows data to be read on both the rising and falling edges of the clock, resulting in a speed twice that of standard SDRAM. The addressing and control signals remain the same as traditional SDRAM, with data judgment still occurring on the rising edge of the clock. The core technologies of DDR lie in dual-edge transmission and prefetching.
DDR's frequency components include the core frequency, clock frequency, and data transfer frequency. The core frequency represents the memory's operating frequency; in DDR1 memory, the core frequency is the same as the clock frequency, while the concept of clock frequency emerged in DDR2 and DDR3, obtained through frequency doubling techniques. The data transfer frequency refers to the rate at which data is transmitted.
Currently, DDR technology has advanced to DDR5.
DDR5 VS DDR3
In terms of appearance and size, the slot positions on DDR4 modules differ from those on DDR3 modules. Both have slots on the insertion side, but the slot positions on DDR4 modules are slightly different to prevent installation of modules into incompatible motherboards or platforms. In terms of capacity, theoretically, each DIMM module of DDR4 can reach a capacity of 512GiB, while each DIMM module of DDR3 has a theoretical maximum capacity of only 128GiB. Additionally, the maximum speed of DDR3 is 2133MT/s, and the data transfer rate of DDR4 starts at 2133MT/s, with the highest speed set at 4266MT/s in the 2013 standard. In terms of power consumption, DDR3 operates at 1.5V, while DDR4 operates at 1.2V, providing energy savings of up to 40%. In terms of performance, independent tests by Anandtech have shown that DDR4 outperforms DDR3, even if the difference is minimal.
Overall, one of the most significant characteristics of DDR4 compared to the previous generation DDR3 is its remarkable increase in frequency, ranging from 2133MHz to 3200MHz, far exceeding the 1333MHz to 2133MHz range of DDR3. Additionally, DDR4 memory significantly improves energy efficiency, surpasses DDR3 in bandwidth at equivalent frequencies, operates at lower voltages, and provides significant energy-saving benefits. Furthermore, DDR4 utilizes cutting-edge internal layout structures and data transfer protocols, greatly enhancing read/write speeds and stability.
DDR4 VS DDR5
As the current mainstream DDR4 standard and the industry-focus DDR5 standard, what are the differences in comparison? From the perspectives of chip development and circuit system design, DDR5 aims to achieve higher bandwidth and throughput by further increasing read/write speeds, changing channel architecture, and burst read/write lengths. The planned maximum speed for DDR5 is up to 8400MT/s.

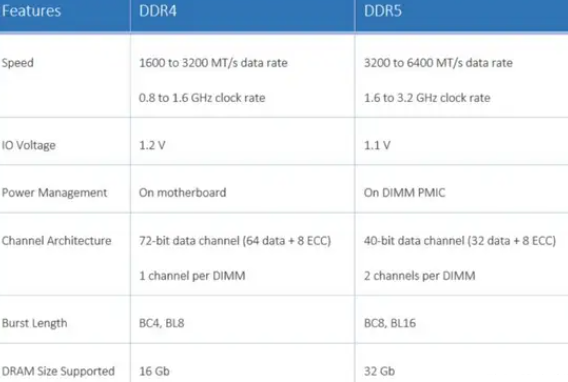

Here is a detailed comparison between DDR4 and DDR5:
DDR4 Use cases
Desktop Computers: DDR4 memory modules are commonly used in desktop computers for everyday computing tasks, multimedia consumption, gaming, and content creation. The faster data transfer speeds and higher capacities of DDR4 memory enhance overall system performance.
Laptops and Ultrabooks: Many laptops and ultrabooks are equipped with DDR4 memory modules to provide efficient memory storage and processing capabilities in a portable form factor. DDR4 memory helps improve battery life and system responsiveness in mobile devices.
Workstations: Workstation computers used for professional applications such as 3D modeling, video editing, and CAD/CAM software benefit from DDR4 memory's higher bandwidth and capacity, enabling faster data processing and multitasking.
Servers: DDR4 memory is extensively used in server systems to handle large datasets, virtualization, cloud computing, and high-performance computing tasks. The higher memory capacity and faster data transfer rates of DDR4 memory contribute to improved server performance and responsiveness.
Gaming PCs: Gaming enthusiasts and professional gamers often opt for DDR4 memory modules in their gaming PCs to support high-speed data transfer, reduce latency, and enhance gaming performance. DDR4 memory helps deliver smooth gameplay and faster loading times in demanding gaming applications.
Differences between DIMM and DDR
The main difference between DIMM and DDR lies in their classification in different aspects of memory.
DIMM mainly refers to the interface mode of memory slots, which is a classification based on physical structure. It includes dual in-line memory modules (DIMM) and single in-line memory modules (SIMM). The gold fingers at both ends of a DIMM independently transmit signals, meeting the need for more data signal transmission. For example, SDRAM DIMMs have a 168-pin DIMM structure, with 84 pins on each side, while DDR DIMMs use a 184-pin DIMM structure, with 92 pins on each side. The difference in the number of slots is their most obvious distinction.
DDR, on the other hand, is a classification based on internal technology, referring to Double Data Rate Synchronous Dynamic Random Access Memory (DDR SDRAM). DDR SDRAM transfers data twice within one clock cycle, allowing data to be transmitted once during the rising and falling edges of the clock, hence the name Double Data Rate Synchronous Dynamic Random Access Memory. Compared to standard SDRAM, DDR utilizes more advanced synchronous circuits and Delay Locked Loop (DLL) technology, doubling the data transfer speed without the need to increase the clock frequency.
In essence, DIMM focuses on the physical interface and structure of memory modules, while DDR focuses on the technical specifications and performance characteristics of memory.
FAQS:
1 What are the differences in appearance between DDR4 and DDR3?
Physically, DDR4 modules or dual in-line memory modules (DIMMs) look very similar to DDR3 DIMMs. However, DDR4 has 288 pins, while DDR3 has 240 pins. DDR4 SO-DIMMs have 260 pins instead of the 204 pins in DDR3. The key notches of DDR4 are positioned differently, and the edge connector appears like a slightly curved "V" shape, making it easier to insert. This design also reduces the force required for module insertion, as not all pins engage simultaneously during the insertion of the module.
2. How do I know if my system supports DDR4? Can I install DDR4 DIMMs in DDR3 slots?
Each generation of DDR is different. DDR4 is not backward compatible with DDR3, so DDR4 DIMMs cannot be inserted into DDR3 DIMM slots. Not only are the key notches different for each generation of DDR (see Figure 1 above), but the pin sizes and arrangements for DDR4 are different from DDR3. Note that in the middle of DDR4 modules, some pins are longer, creating a slightly curved "V" shape. Refer to your motherboard documentation to ensure it has the correct DDR4 slots.
